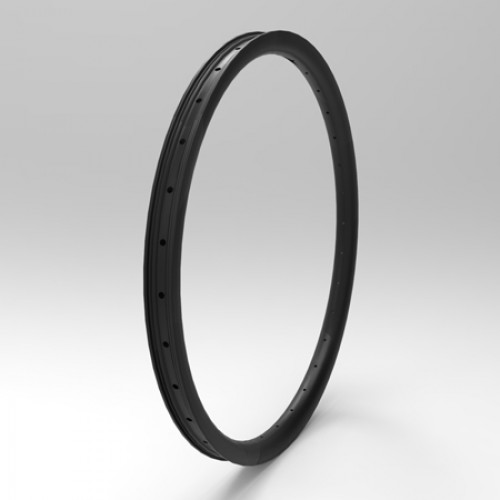

[标准款 DH] 26" 山地车圈 40mm
-
￥1,470
![[标准款 DH] 26" 山地车圈 40mm](https://nextie.com.cn/image/cache/catalog/products/mtb-40mm/NXT26DH40-Down-Hill-40mm-Width-Carbon-Fiber-26-inch-MTB-Clincher-Rim-Tubeless-Compatible-1000x1000.jpg "[标准款 DH] 26\" 山地车圈 40mm")
![[标准款 DH] 26" 山地车圈 40mm](https://nextie.com.cn/image/cache/catalog/products/mtb-40mm/DH-40mm-Width-Carbon-Fiber-26-27.5-29-inch-Mountain-Bike-Clincher-Rim-Tubeless-Compatible-1000x1000.jpg "[标准款 DH] 26\" 山地车圈 40mm")
![[标准款 DH] 26" 山地车圈 40mm](https://nextie.com.cn/image/cache/catalog/products/mtb-40mm/NXT29DH40-NXT27DH40-NXT26DH40-1000x1000.png "[标准款 DH] 26\" 山地车圈 40mm")
Introduction
In the year of 2015 we designed and developed the RM27, RM30, AM35 and AM40 series of carbon fiber mountain rims. These four mountain rims incorporate aerodynamic design concepts, which are beautiful in appearance and extremely strong. Based on the design shape of AM40 series, we developed a DH series mountain rim with an unprecedented rim lip thickness of 4.5mm in size 26", 27.5" and 29".
The weight of model NXT26DH40 is 550g. The profile drawing of this rim is as below.
This rim could be used for Trail, Enduro, Freeride and Down Hill riding. The tire size for this model of rim is recommended at 2.1" ~ 2.85". The tire pressure is recommended at 24 ~ 39 psi.
What's in the Box
Carbon Rim(s)
Documentation
Learn more
What is the difference between weaves UD, 3K and 12K?
What is Free Coating Manufacturing (FCM) process?
What is the Difference between Ultralight, Premium and Standard Edition?
What is ERD (Effective Rim Diameter)?
How much spoke tension should I use?
基本信息
- 型 号: NXT26DH40
- 材 质: Toray T700碳纤维
- 类 型: 开口圈 & 直边
- 质 保: 2年
尺 寸
- 尺 寸: 26"
- 辐条孔角度: ± 6°
- BSD: 559mm
- ERD: 515mm
- 外 宽: 40mm
- 辐条孔直径: 4.5mm
- 内 宽: 31mm
- 截面高度: 32mm
- 气嘴孔直径: 6.5mm（法式）
- 重 量: 550g
- 装配孔直径: 7.5mm
- 孔 数: 28, 32
使用建议
- 外胎尺寸: 2.1" ~ 2.85"
- 最大辐条张力: 100 ~ 130kgf
- 最大系统重量: 132Kg
- 最大胎压: 21 ~ 35psi
外 观
- 纹 路: UD / 3K / 12K
- 涂 装: 免涂装 / 哑光 / 亮光
适用范围
- 适用范围: Trail, All Mountain, Big Mountain, Freeride, Enduro (and Super Enduro), Down Hill, Dirt Jump This rim is designed for tubeless or tubeless-ready tires only. Inner tubes are ok, but the tire must have tubeless beads for safe retention.
真空兼容与否
- 真空兼容: 是的
